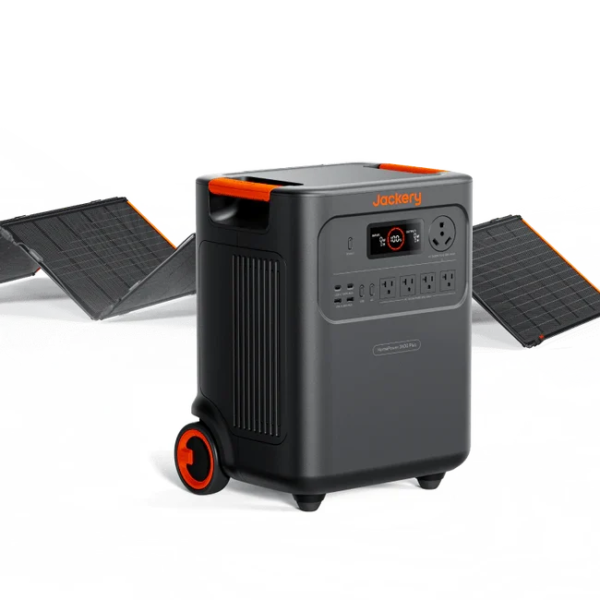

Jackery Solar Generator HomePower 3600 Plus + SolarSaga 500 X
The Jackery Solar Generator HomePower 3600 Plus + SolarSaga 500 X is an all-in-one, high-capacity portable power solution designed for home backup, off-grid living, and outdoor adventures. With 3,600W of continuous AC output (7,200W surge) and a 3,584Wh LiFePO4 battery , it delivers reliable energy to run essential household appliances during power outages or emergencies.
Eligible contiguous-U.S. orders include free standard or curbside freight delivery, as applicable. Freight deliveries are curbside. DANANOA offers a 90-day return window and covers authorized return shipping; policy conditions apply.
$1,749.00
Description
Jackery Solar Generator HomePower 3600 Plus + SolarSaga 500 X
The Jackery Solar Generator HomePower 3600 Plus + SolarSaga 500 X is an all-in-one, high-capacity portable power solution designed for home backup, off-grid living, and outdoor adventures. With 3,600W of continuous AC output (7,200W surge) and a 3,584Wh LiFePO4 battery, it delivers reliable energy to run essential household appliances during power outages or emergencies.
Paired with the SolarSaga 500 X solar panel, the HomePower 3600 Plus recharges quickly from the sun—making it the perfect eco-friendly alternative for extended off-grid power. With 6,000+ life cycles and expansion capability up to 21.48kWh, this system provides unmatched durability, scalability, and peace of mind.
Jackery Solar Generator HomePower 3600 Plus + SolarSaga 500 X Features
High Output Power – 3,600W Rated / 7,200W Surge
Run high-demand appliances including refrigerators, microwaves, air conditioners, and water pumps.
Expandable Capacity – Up to 21.48kWh
Connect multiple units to increase storage for longer backup support.
Fast Solar Charging – 500W Input
Recharge efficiently using the SolarSaga 500 X, even in cloudy conditions.
Durable LiFePO4 Battery – 6,000+ Cycles
Built to last with advanced battery management for optimal safety and reliability.
Quick AC Recharging – 2.5 Hours
Recharge from wall AC power in just 2.5 hours or combine AC + solar for hybrid charging.
Smart UPS Backup
Features <20ms switchover time for seamless power during outages.
Portable & Practical Design
Equipped with pull rod and wheels for easy mobility and storage.
Jackery Solar Generator HomePower 3600 Plus + SolarSaga 500 X Applications
- Home Backup Power – Keeps essential appliances running during blackouts.
- Emergency Preparedness – Provides peace of mind during storms and disasters.
- Off-Grid Living – Reliable energy for cabins, RVs, and remote setups.
- Outdoor Adventures – Clean, quiet, and portable power for camping and road trips.
What’s Included
Everything you need is included with your product.
- Jackery HomePower 3600 Plus
- SolarSaga 500 X
- AC Charge Cable
- User Manual
Warranty
- 3+2 Years Manufacturer Warranty
Jackery Solar Generator HomePower 3600 Plus Specifications
General
| Category | Specifications |
| Weight | About 77.16 lbs (35 kg) |
| Dimensions | 15.2×12.2×19.3 in / 38.5×30.9×49.1 cm |
| Charge Temperature | -4°F to 113°F ( -20°C to 45°C) |
| Discharge Temperature | -4°F to 113°F ( -20°C to 45°C) |
| Warranty | 3+2 Years |
Battery
| Category | Specifications |
| Capacity | 80Ah / 44.8V DC (3584 Wh) |
| Cell Chemistry | LiFePO4 |
| Cycle life | 6000 cycles to 70%+ capacity |
Output Ports
| Category | Specifications |
| AC Output | (4x) 120V~ 60Hz, 20A Max, 2400W | (1x) 120V~ 60Hz, 30A Max, 3600W |
| AC Total Output | 3600W Rated, 7200W Surge peak |
| USB-C Output | (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| USB-A Output | (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A |
| Cigarette Lighter Port | 12V⎓10A Max |
Input Ports
| Category | Specifications |
| Charge Mode AC Input | 100V-120V~ 60Hz, 15A Max |
| Bypass Mode AC Input/Output | 120V~ 60Hz, 12A Max, 1440W |
| DC Input | (2x) DC 8mm Ports: 12-16V (Working Voltage)⎓8A Max, Double to 8A Max; | 16-60V (Working Voltage)⎓12A Max, Double to 24A/1000W Max |
Charging Time
| Category | Specifications |
| AC Adapter | 2.5 Hours |
| Car Adapter | Supported |
Jackery SolarSaga 500 X Specifications
General
| Category | Specifications |
| Weight | 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg) |
| Protection Class Against Electric Shock | Class II |
| Waterproof | IP68 |
| Operating Temperature Range | -40~185℉（-40~85℃） |
| Warranty | 5 Years |
Solar
| Category | Specifications |
| Maximum System Voltage | 600V DC |
| Maximum Reverse Current | 15A |
| Bifaciality Coefficient (back/front) | Pmax>80%，Voc>97%，Isc>80% |
| Voltage Temperature Coefficient | -0.26%/℃ |
| Power Temperature Coefficient | -0.32%/℃ |
STC (1000W/㎡, 25℃, AM 1.5)
| Category | Specifications |
| Peak Power (Pmax) | 500W±5% |
| Open Circuit Voltage (VOC) | 48.5V±5% |
| Short Circuit Current (Isc) | 13.02A±5% |
| Power Voltage (Vmp) | 41.7V±5% |
| Power Current (Imp) | 12.0A±5% |
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
| Category | Specifications |
| Peak Power (Pmax) | 545W±5% |
| Open Circuit Voltage (Voc) | 49.2V±5% |
| Short Circuit Current (Isc) | 13.86A±5% |
| Power Voltage (Vmp) | 42.5V±5% |
| Power Current (Imp) | 12.84A±5% |
Dimensions
| Category | Specifications |
| Folded | Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm) |
| Unfolded | Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm) |
Jackery Solar Generator HomePower 3600 Plus Video
Frequently-Asked Questions
Can the HomePower 3600 Plus power large appliances like refrigerators or microwaves?
Yes, with its 3,600W rated output and 7,200W surge capability, it can power refrigerators, microwaves, and even AC units.
How long does it take to recharge?
It recharges in about 2.5 hours via AC, and with the SolarSaga 500 X panel, full solar charging depends on sunlight conditions (typically 6–8 hours).
Can I expand the system for longer runtimes?
Yes, the HomePower 3600 Plus supports expansion up to 21.48kWh with additional battery packs.
Does it include UPS functionality?
Yes, it includes UPS with <20ms transfer time.
